80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine

80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine

ชื่อแบรนด์: Beishun
เลขรุ่น: XLB-500×500/0.8MN
ขั้นต่ำ: 1เซ็ต
ราคา: สามารถต่อรองได้
เงื่อนไขการจ่ายเงิน: แอล/C,ที/ที
ความสามารถในการจําหน่าย: 30 ชุด/40 วัน
ข้อมูลรายละเอียด
สถานที่กำเนิด:
ชิงเต่า
ได้รับการรับรอง:
ISO/CE
เครื่องทำความร้อน:
ไฟฟ้า / น้ำมัน / ไอระเหย
รูปแบบโครงสร้าง:
แนวนอน
จังหวะกระบอกสูบ:
500มม
ควบคุม:
PLC อัตโนมัติ
เวลาวัลคาไนซ์:
0-999ส
ประเภทเครื่องจักร:
เครื่องอัดวัลคาไนซ์แบบไฮดรอลิก/เครื่องกล
ชื่ออื่น ๆ:
เครื่องพิมพ์แวลคานิสเมนต์แบบเรียบ
ช่วงอุณหภูมิ:
0-400 ℃
อุณหภูมิในการทำงาน:
สูงถึง 300°C
ความเข้ากันได้ของแม่พิมพ์:
รองรับแม่พิมพ์แบบกำหนดเอง
โหมดทำความร้อน:
เครื่องทำความร้อนไฟฟ้า
จุดขายที่สำคัญ:
คุณภาพดีและราคา
รายละเอียดการบรรจุ:
40GP/OT
เน้น:

80-ton PLC vulcanizing machine

,

column-type flat vulcanizing press

,

automatic rubber vulcanizing machine

รายละเอียดสินค้า
80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine
Applications & Capabilities
This advanced 80-ton column-type precision PLC fully automatic flat vulcanizing machine is engineered for high-performance rubber hydraulic molding across diverse industrial applications:
  • Silicone Rubber Products: O-rings, mobile phone keyboards, computer keyboards, remote control buttons, pressure cooker and rice cooker sealing gaskets, household appliance components, food and medical device parts, nipples, medical supplies, handicrafts, toy seals, conductive rubber, automotive rubber parts, industrial rubber components, medical silicone products, sports equipment, various utensils, multi-layer molded products, plywood, epoxy resin boards, carbon fiber boards, PI films, and various composite materials and rubber-plastic products for hot pressing, shaping, manufacturing, and processing.
  • Flat Tapes and Sheets: Precision molding of flat tapes, sheets, and polymer flat products.
  • Seals and O-rings: Production of various rubber molded and non-molded products including seals, O-rings, oil seals, gaskets, thermosetting plastics, foams, resins, building materials, and diverse rubber-plastic products.
These machines are essential equipment in the rubber products industry, delivering precision, reliability, and automation for demanding manufacturing environments.
Technical Specifications
Model XLB-D350X350 XLB-D400X400 XLB-D600X600 XLB-D750X850 XLB-D900X900
Total Pressure 0.25mn 0.50mn 1.00mn 1.60mn 2.50mn
Platen Size 350x350mm 400x400mm 600x600mm 750x850mm 900x900mm
Daylight 125mm 125mm 125mm 125mm 125mm
Working Layer 2 2 2 2 2
Piston Stroke 250mm 250mm 250mm 250mm 250mm
Heating Method Electric Electric Electric Electric Electric
Platen Unit Area Pressure 20kg/cm² 31kg/cm² 28kg/cm² 31kg/cm² 31kg/cm²
Product Images

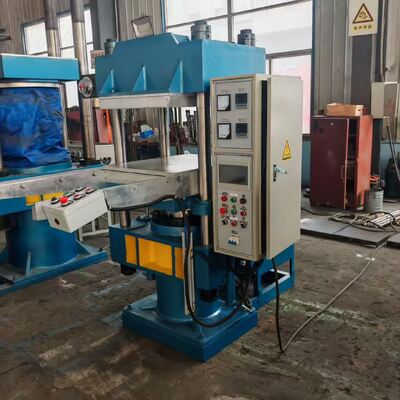

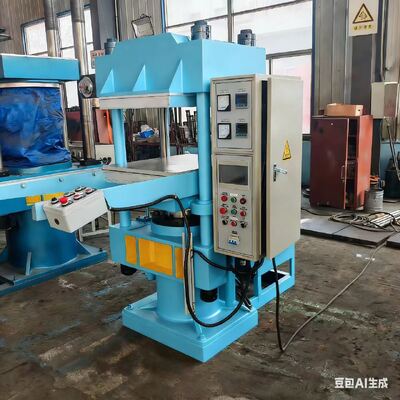

80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine 0 80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine 1
